Solderable Super Thin Magnet Wire 0.03mm Enameled Copper Wire

Name: Solderable Super Thin Magnet Wire 003mm Enameled Copper Wire
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.03mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Solderable Super Thin Magnet Wire 0.03mm Enameled Copper Wire

Thermal rating : 155

Insulation Material : Polyurethane

Diameter : 0.03mm

Conductor material : Copper

Key word : Solderable Super Thin Magnet Wire 0.03mm Enameled Copper Wire

Type : Solderable Super Thin Magnet Wire 0.03mm Enameled Copper Wire

Contact Now

Solderable Super Thin Magnet Wire 0.03mm Enameled Copper Wire

Enameled round Copper wire’s benefits:

Heat resistance and high solvent resistance
Good corrosion resistance, good scuff resistance
Good conductivity and smooth surface
Insulation varnish: ELANTAS, ALAKTA and Dupont
Intelligent on-line monitoring equipment
Auto-change spool / bobbin equipment

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Bare Wire Diameter	0.030±0.001	0.030	0.030
Coating Thickness	≥ 0.0025 mm	0.0035	0.0035
Overall Diameter	≤ 0.039 mm	0.037	0.037
Conductor Resistance	≤ 26.569Ω/m	23.745	23.639
Elongation	≥ 10 %	15.4	14.7
Breakdown Voltage	≥ 275V	1350	1298
Pinhole Test	≤ 2 holes/5m	0	0
Continuity	≤ 24 holes/20m	0	0
Adherence	no crack visible	OK
Cut-through	200℃ 2minsno breakdown	OK
Heat Shock	175±5℃/30minno crack	OK
Solderability	390±5℃ 2second no slags	OK

Product Tags:

Solderable Enameled Copper Wire

Super Thin Enameled Copper Wire

0.03mm Enameled Copper Wire

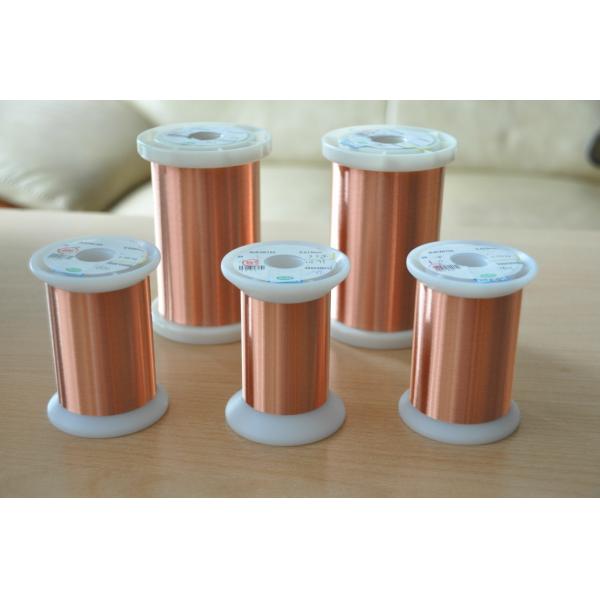

Solderable Super Thin Magnet Wire 0.03mm Enameled Copper Wire Images
