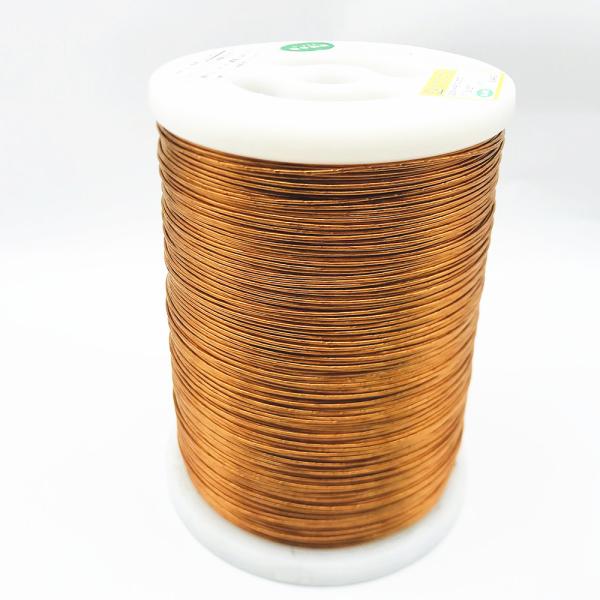

0.05mm *120 Taped Copper Litz Wire Mylar Stranded

Name: 005mm 120 Taped Copper Litz Wire Mylar Stranded
Brand: RVYUAN
Price: 1 USD

Brand Name : RVYUAN

Model Number : 2UEW-F-PI

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20Kilogram/Kilograms

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product name : Taped litz wire

Thermal Class : 155/180

Insulation : PI Film

Overall Diameter : Max.81.45mm

No. of Strands : 120

conductor diameter : 0.05mm

Min. breakdown voltage : 6000V

Contact Now

0.05mm x120 Taped Litz Wire Mylar Stranded Copper Wire

This mylar Litz wire is mainly used for transformer winding, it covered with polyersterimide film or PET film.

It employs a stranded wire with individually insulated conductors (forming abundle), served with polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability.

Possibilty to customize the litz wire according to your needs.

 	 			Test report: 0.10mm x 120 strands, thermal grade 155

 			Item
 			Standard
 			Test result

 			Single wire diameter mm
 			0.05±0.003 mm
 			0.05

 			Thickness of coating
 			Min. 0.005mm
 			0.009mm

 			Max.O.D. mm
 			Max.0.06mm
 			0.059

 			Max. Resistance Ω/m at20℃
 			Max.81.45
 			77.39

 			Mini breakdown voltage
 			3570V
 			6000V

 			Overlap(%)
 			33%/55%/60%
 			33%
